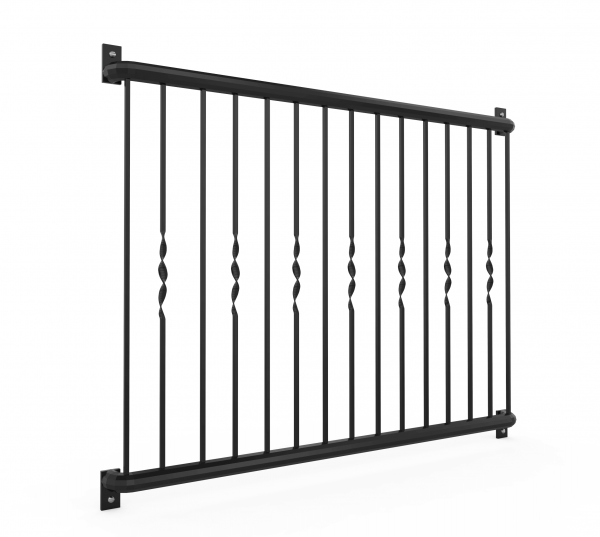

Langdale Juliet Balcony

Product Description

The Langdale Juliet balcony. Brand new to our range and sure to be very popular. A high quality balcony that is easy to fit and is also available in custom sizes.

The top rail and bottom rails are made from high grade 48.3mm CHS Tube. Infill bars are produced from high grade 12mm x 12mm square section bar. The decorative bars a hot forged to create the barley twist design

The gap between the bars is less than 100mm which is compliant with UK building regulations.

The balcony projects 90mm From the wall, and has a clearance of 40mm Between the back of the balcony and the face of the mounting feet.

Galvanised as standard prior to powder coating which offers superb protection against the elements. More detail on galvanising can be found here

Mountings are 50mm x 100mm and are have a 12mm ID laser cut hole. These are designed to suit either M8 or M10 fixings.

The Overall height of the balcony is 1100mm (1.1 Mtr) which meets the current UK building regulations.

Below is a list of the standard horizontal fixing centers. These are from the centre of the fixing holes horizontally from left to right. We suggest adding approx. 300mm to your reveal opening when selecting your balcony. For example a 1500mm reveal opening would require an 1700mm balcony which has hole centres at 1750mm. This would allow for a 125mm spacing from each edge of your reveal. This is based on mounting the balcony onto brick or block work. If you are choosing your balcony for a timber framed dormer we suggest that the balcony is selected to a size that would hit the timber studwork either side of your door.

If you require help on selecting the correct size to suit your requirements you can contact us directly. Our contact details can be found here.
