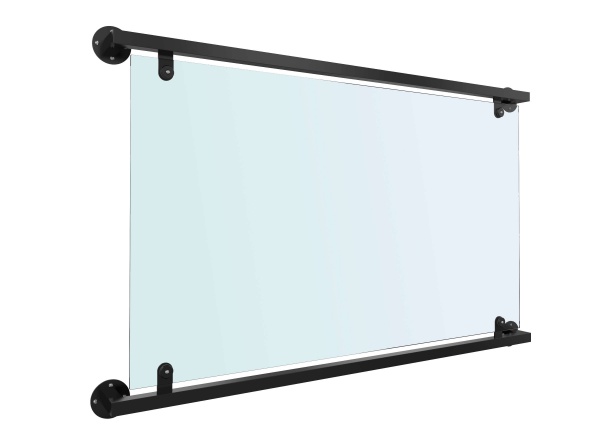

The Aysgarth Juliet balcony is a stunning contemporary glass and steel design glass, and a brand new addition into our range for this year!
This balcony is ideally suited for customers looking for a modern glass juliet balcony at a superb price point.
Easy to fit and also available in custom sizes, so if the size you require is not listed please call us and we will be happy to quote.
The Aysgarth balcony has galvanised and powder coated rails which offers superb protection against the elements. More detail on galvanising can be found here
The top and bottom rails are produced from UK sourced 40x40mm Box Sections. The glass clamps are silver 316 grade stainless steel, and are bolted through the glass panel, offering strength and security.
The glass is 13.5mm Toughened Laminated (Sizes 1200mm to 1700mm Wide)
The glass is 17.5mm Toughened Laminated (Sizes 1800mm to 2000mm Wide)
The glass is 21.5mm Toughened Laminated (Sizes 2100mm to 2500mm Wide)
Clear, with polished edges, and comes with pre-machined fixing holes for ease of installation. Full technical diagrams are available on request.
The balcony projects 100mm From the wall, and has a clearance of 60mm between the back of the balcony and the face of the mounting feet. We can produce this balcony with a larger projection if required. Just call us to discuss if you require this option.
The mounting feet are laser cut 115mm OD discs and have a 12mm mounting holes. These are designed to suit M8 / M10 fixings.
The Overall height of the balcony is 1100mm (1.1 Mtr) which meets the current UK building regulations.
We suggest adding an additional 400mm to the width of your door opening when selecting the balcony width. For example if your door opening is 1500mm you would choose the 1900mm version to suit this.
If you are installing this balcony to a timber dormer frame we suggest calling us on 01274 593258 to discuss this fitment.
If you require help on selecting the correct size to suit your requirements you can contact us directly. Our contact details can be found here.
