Product Description

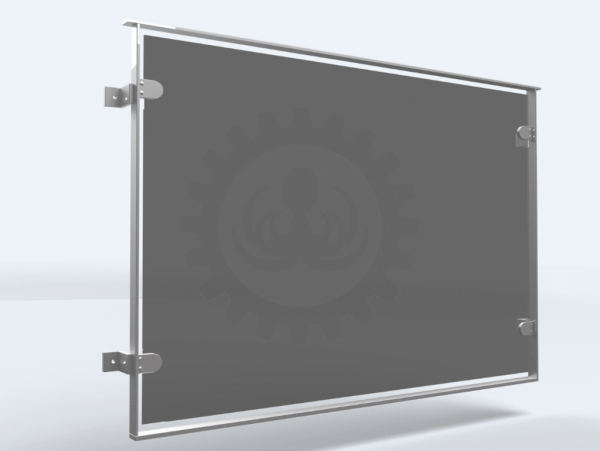

The Runswick glass and steel balcony combination balcony. Named after the pretty seaside village in North Yorkshire known for its beautiful coastal views. Shown here with a silver gloss powder coated frame, the Runswick balcony is very popular with our customers who require a simple wall mounted glass balcony.
The steel frame makes the Runswick a very versatile balcony with its simple mounting design. The top steel rail is made from 40mm x 12mm soft touch convex bar.
The remainder of the frame is made from 40mm x 8mm flat bar for the bottom rail, with 40 x 40 Box Sections for the left and right frame legs. Mountings holes are drilled at 12mm. These are designed to suit M10 fixings. The mountings are welded to the outer frame of the balcony.
The entire range is galvanised as standard prior to powder coating.
The hole centres are an additional 50mm to the frame width. For example a 1500mm version will have hole centres at 1550mm horizontally from centre of hole to centre of hole.
The clear glass panel is held in place with four BZP (Bright Zinc Plated) steel glass mountings. These are fixed to pre-welded tabs on the frame, making installation simple. The clear glass panel is 10mm CE Certified Toughened Safety Glass. The balcony is delivered as two separate parts.
The Overall height of the balcony is 1100mm (1.1 Mtr) which meets the current UK building regulations.
