High Security Window Grilles

High Security Window Grilles
  Zoom
High Security Window GrillesHigh Security Window GrillesHigh Security Window GrillesHigh Security Window Grilles
Our Price:  £47.50(Inc. 20% VAT)
+



Brand:  Iron Octopus

Large range of sizes available! All maunfactured in house from heavy duty steel. Galvanised as standard, with a range of powder colour finishes avialable.

40x8mm Flat bar with 12mm round solid steel infill bars.

Bespoke sizes available on request.


Our security grilles are very simple to fit and come hot dip zinc galvanised as standard. They are heavy duty and are a true deterrent to unwanted visitors!

The galvanising process undertaken is completed to British Standard BS EN ISO 1461 and offers our products superb protection against corrosion. This process is far superior to standard wet spray primer systems and will stand the test of time.

We also powder coat in-house, and we offer a range of colours allowing you to match the grilles to your windows.

If you choose to have your grille powder coated, we will galvanise the grille prior to powder coating process as standard.


PRODUCT DETAILS

The grilles are fully welded and made from strong 40mm x 8mm thick Mild Steel to create the frame and anti- spread bracing bars. The infill bars are 12mm solid round steel and are also fully welded. The anti-spread mid bars are fully drilled allowing the infill bars to pass through them. The bars are then again fully welded offering maximised strength and a neat finish.

The bars are spaced at gaps no greater than 100mm in line with building regulations.

The laser cut mounting tabs are fully welded and have a 12mm I/D hole to allow for M10 fixings into a wide variety of materials such as brick, wood and blockwork.

The moutings on the grille are set with a 60mm spacing between the back of the grille and the face of the mouting which will allow
windows to be opened to vent. If you require a large spacing please let us know and we can quote for this.



CHOOSING YOUR SIZE


Firstly measure the opening width and the opening height. (These are the measurements of the window opening in the brickwork)


STEP 1 -

Measure the width of your window reveal and add at least 150mm (15cm) to this measurement to make sure you have adequate space either side of the opening to allow for a secure fixing.

STEP 2-

Measure the height of the opening and select the closest height from our range to suit.



 If you require a size not listed here on our website, please call us on 01274 033986 and we will be happy to quote you!



TECHINAL DIAGRAMS

You can refer to the diagrams in the chart below for dimensional details on our standard range.

Click on the links in the right hand column and the diagrams will pop up in a new window for you.

WINDOW GRILLE SIZING DIAGRAMS

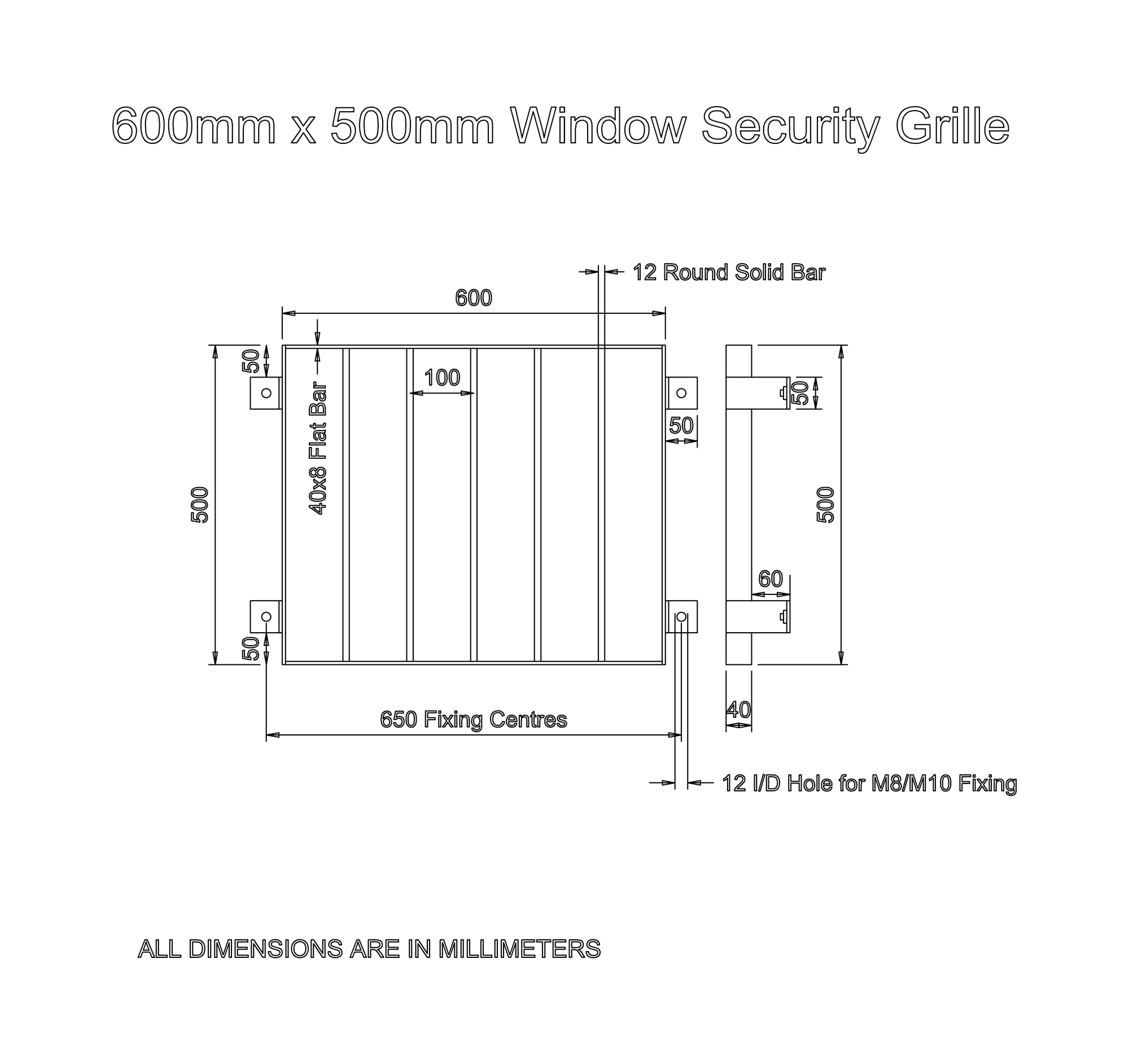

600mm (w) x 500mm (h) /user/products/large/650mm-x-500mm---Window-Secu.jpg

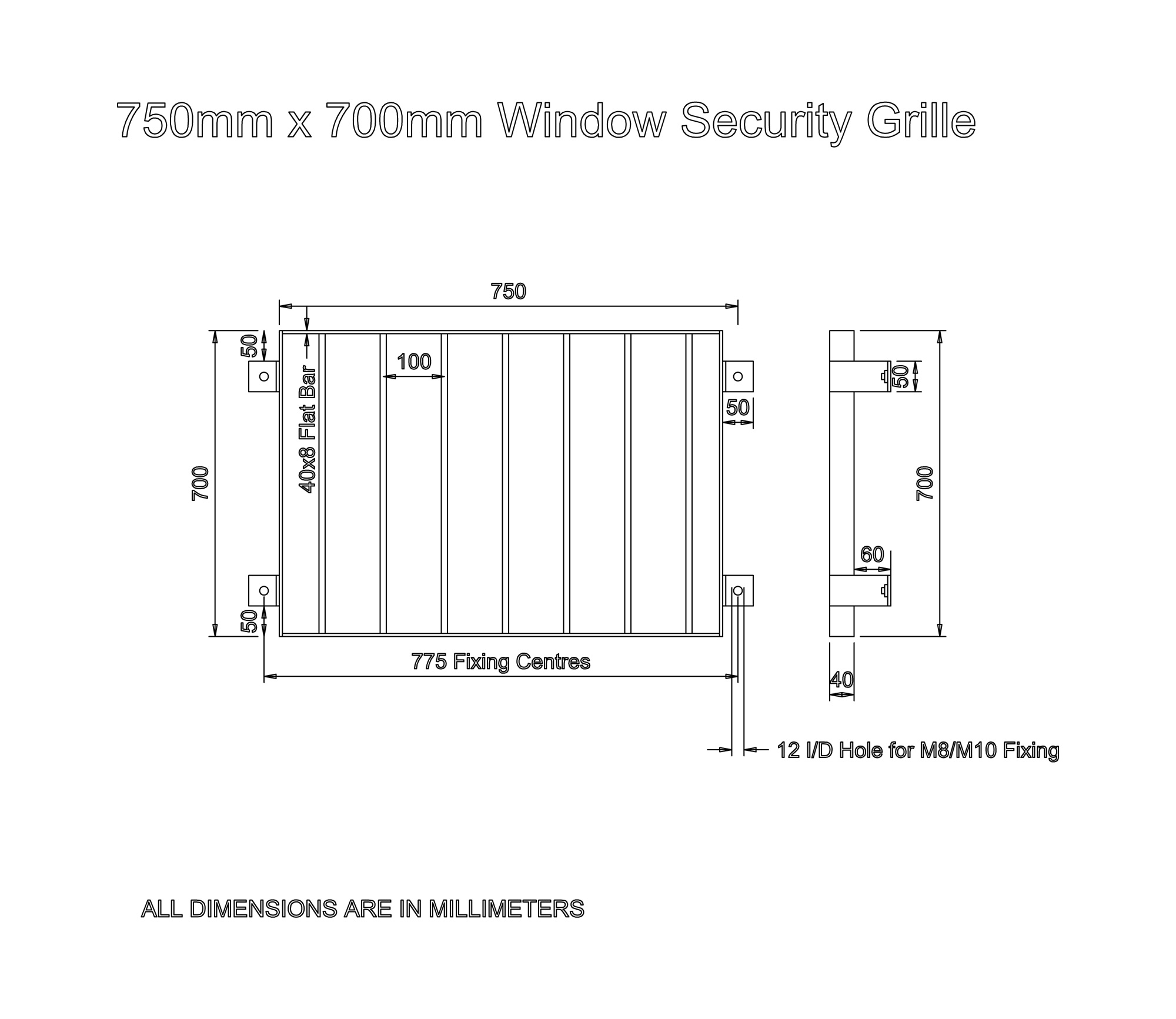

750mm (w) x 700mm (h) /user/products/large/750mm-x-600mm---Window-Secu.jpg
1000mm (w) x 1100mm (h) /user/products/large/1000mm-x-1100mm---Window-Se.jpg
1000mm (w) x 1300mm (h) /user/products/large/1000mm-x-1300mm---Window-Se.jpg
1000mm (w) x 1500mm (h) /user/products/large/1000mm-x-1500mm---Window-Se.jpg

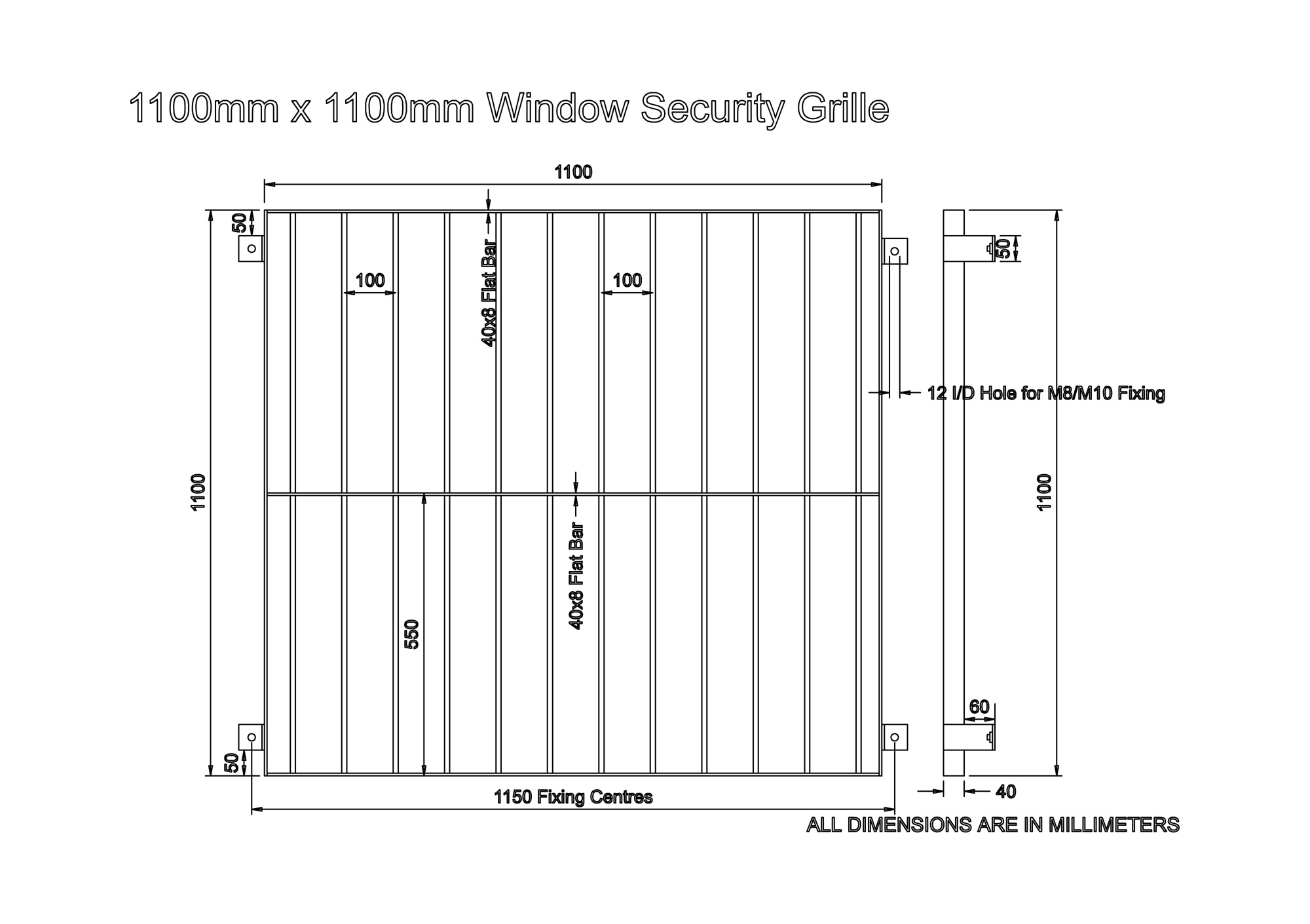

1100mm (w) x 1100mm (h) /user/products/large/1100mm-x-1100mm---Window-Se.jpg
1100mm (w) x 1300mm (h) /user/products/large/1100mm-x-1300mm---Window-Se.jpg

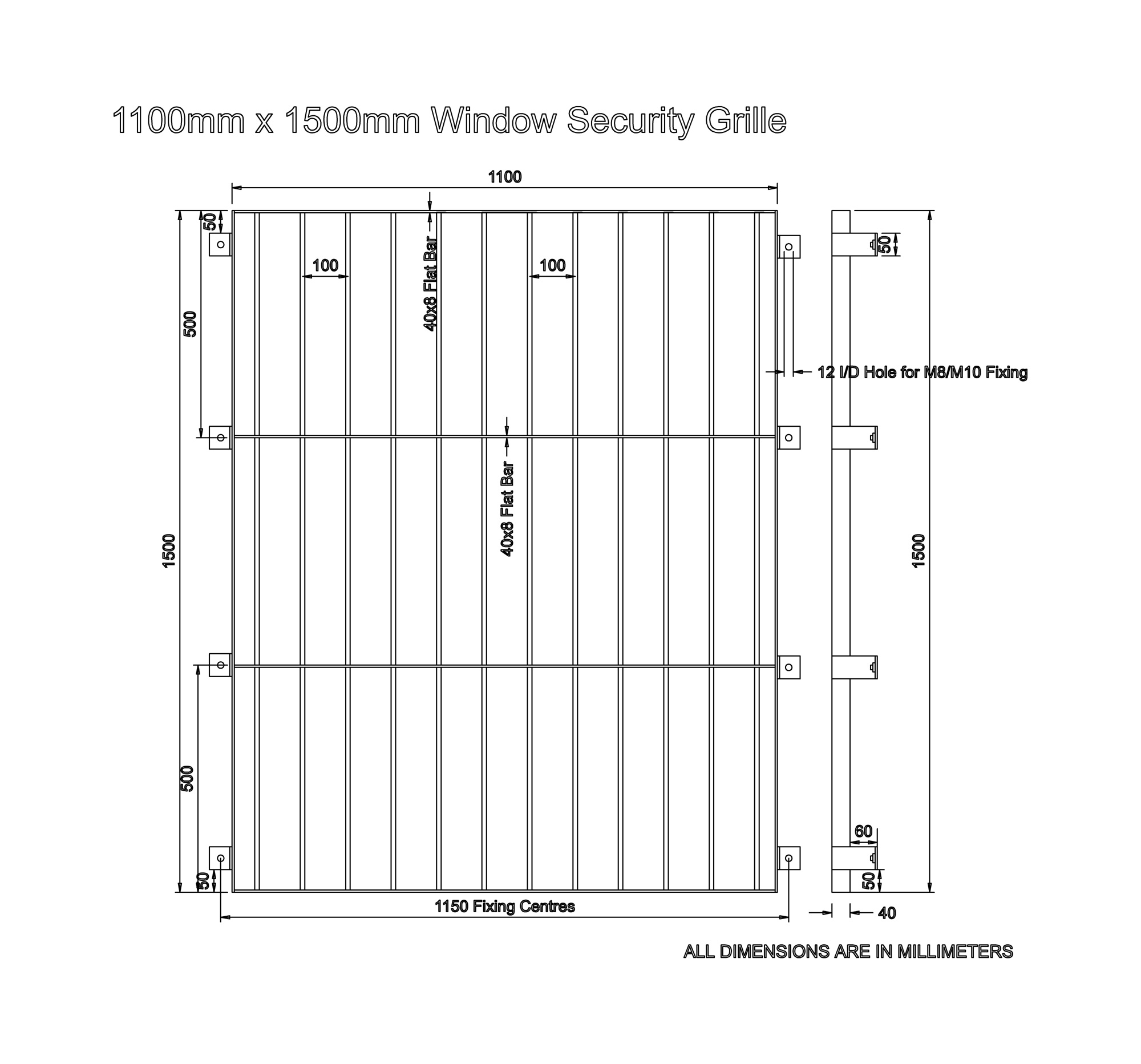

1100mm (w) x 1500mm (h) /user/products/large/1100mm-x-1500mm---Window-Se.jpg
1200mm (w) x 1100mm (h) /user/products/large/1200mm-x-1100mm---Window-Se.jpg
1200mm (w) x 1300mm (h) /user/products/large/1200mm-x-1300mm---Window-Se.jpg
1200mm (w) x 1500mm (h) /user/products/large/1200mm-x-1500mm---Window-Se.jpg
1300mm (w) x 1100mm (h) /user/products/large/1300mm-x-1100mm---Window-Se.jpg
1300mm (w) x 1300mm (h) /user/products/large/1300mm-x-1300mm---Window-Se.jpg
1300mm (w) x 1500mm (h) /user/products/large/1300mm-x-1500mm---Window-Se.jpg
1400mm (w) x 1100mm (h) /user/products/large/1400mm-x-1100mm---Window-Se.jpg

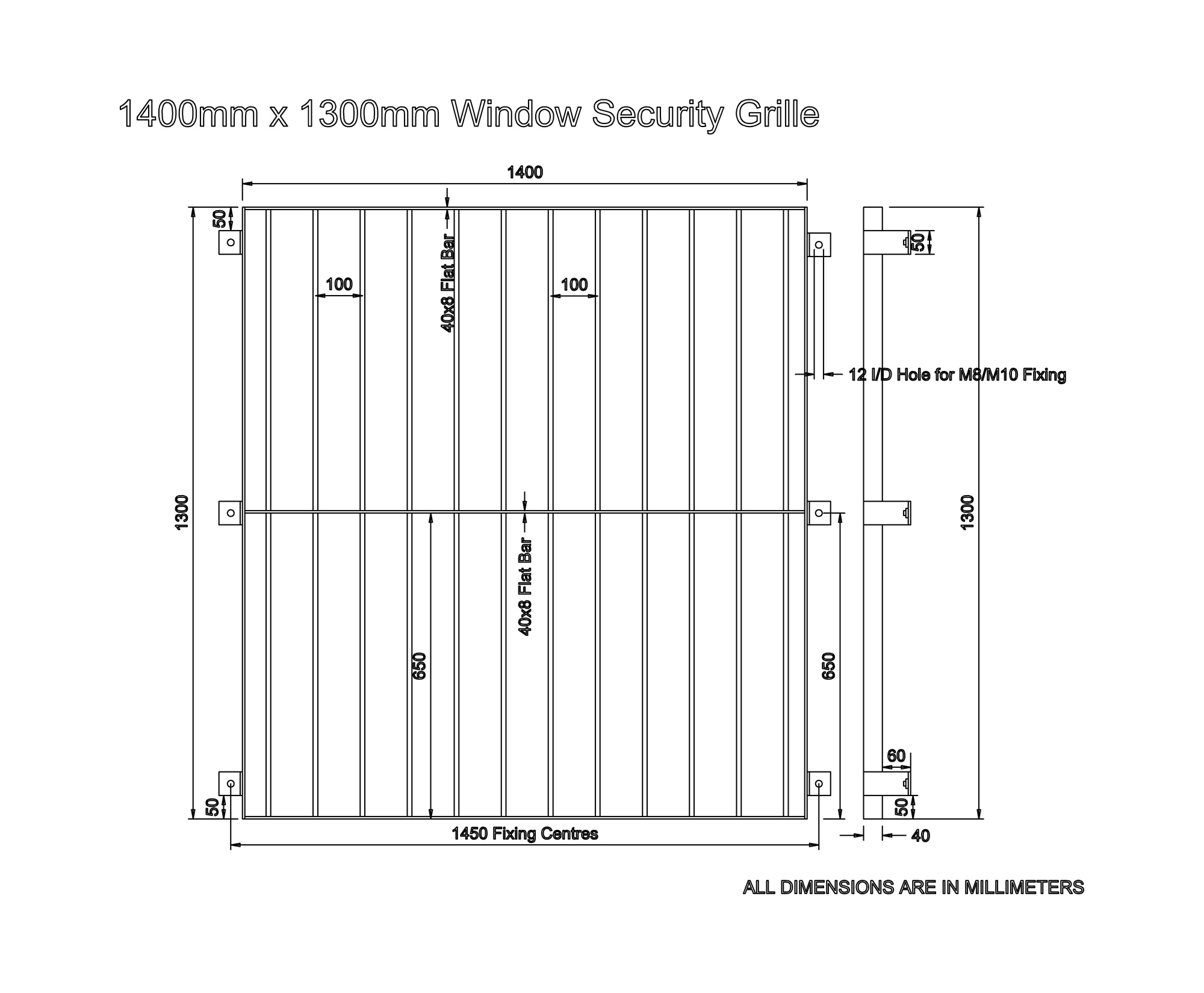

1400mm (w) x 1300mm (h) /user/products/large/1400mm-x-1300mm---Window-Se.jpg
1400mm (w) x 1500mm (h) /user/products/large/1400mm-x-1500mm---Window-Se.jpg
1500mm (w) x 1100mm (h) /user/products/large/1500mm-x-1100mm---Window-Se.jpg
1500mm (w) x 1300mm (h) /user/products/large/1500mm-x-1300mm---Window-Se.jpg
1500mm (w) x 1500mm (h) /user/products/large/1500mm-x-1500mm---Window-Se.jpg
1600mm (w) x 1100mm (h) /user/products/large/1600mm-x-1100mm---Window-Se.jpg
1600mm (w) x 1300mm (h) /user/products/large/1600mm-x-1300mm---Window-Se.jpg
1600mm (w) x 1500mm (h) /user/products/large/1600mm-x-1500mm---Window-Se.jpg
1700mm (w) x 1100mm (h) /user/products/large/1700mm-x-1100mm---Window-Se.jpg
1700mm (w) x 1300mm (h) /user/products/large/1700mm-x-1300mm---Window-Se.jpg

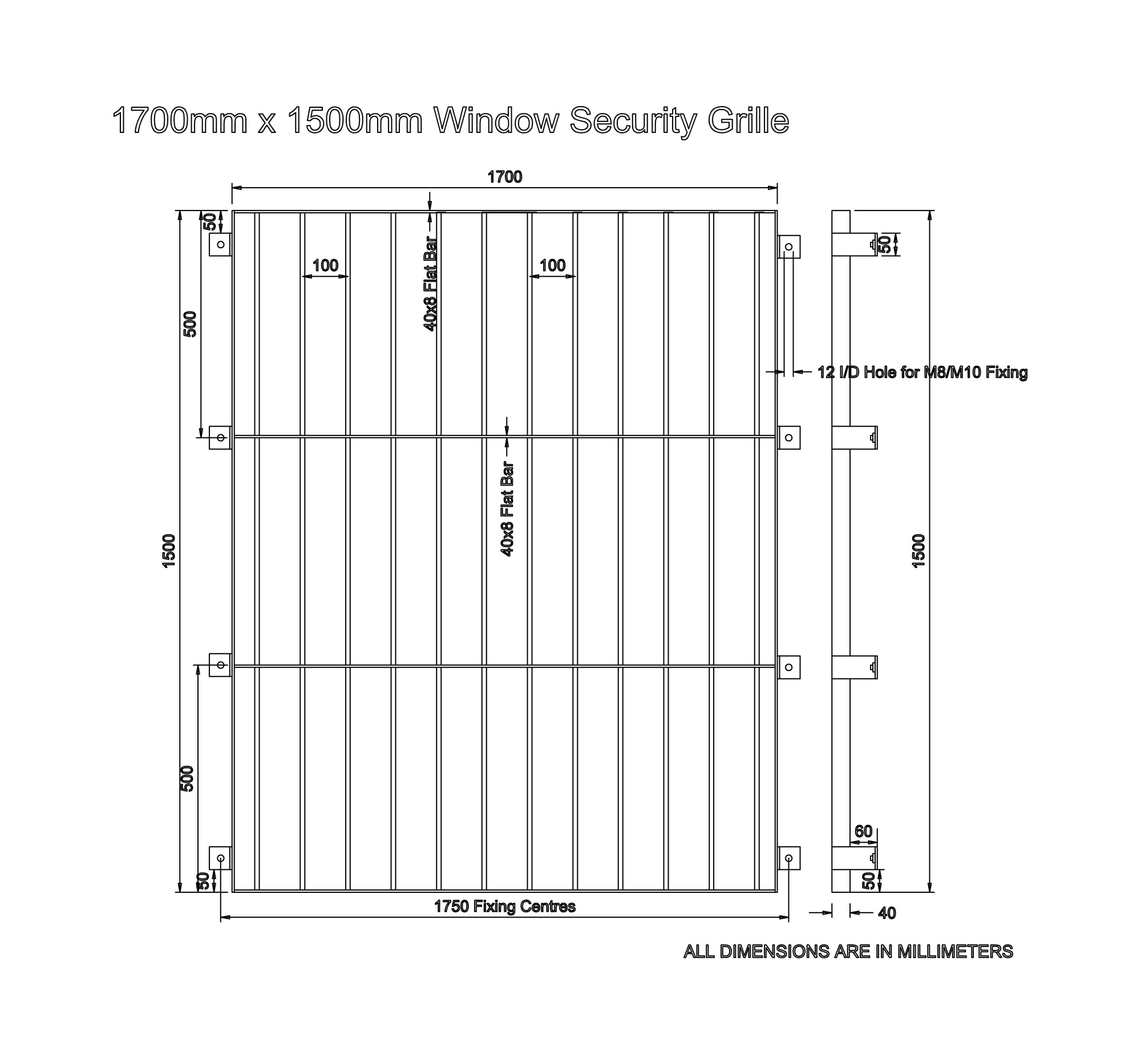

1700mm (w) x 1500mm (h) /user/products/large/1700mm-x-1500mm---Window-Se.jpg

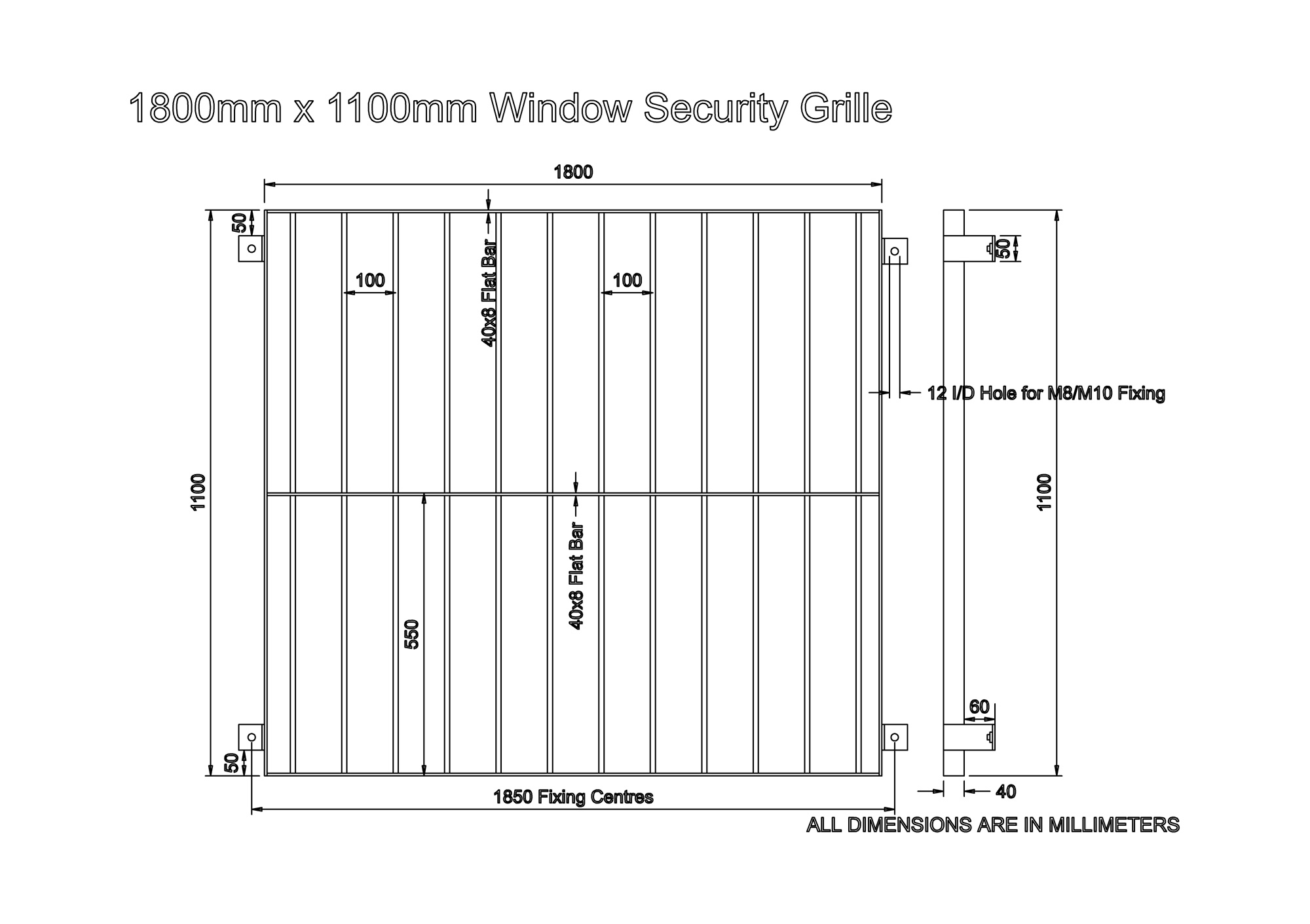

1800mm (w) x 1100mm (h) /user/products/large/1800mm-x-1100mm---Window-Se.jpg
1800mm (w) x 1300mm (h) /user/products/large/1800mm-x-1300mm---Window-Se.jpg
1800mm (w) x 1500mm (h) /user/products/large/1800mm-x-1500mm---Window-Se.jpg

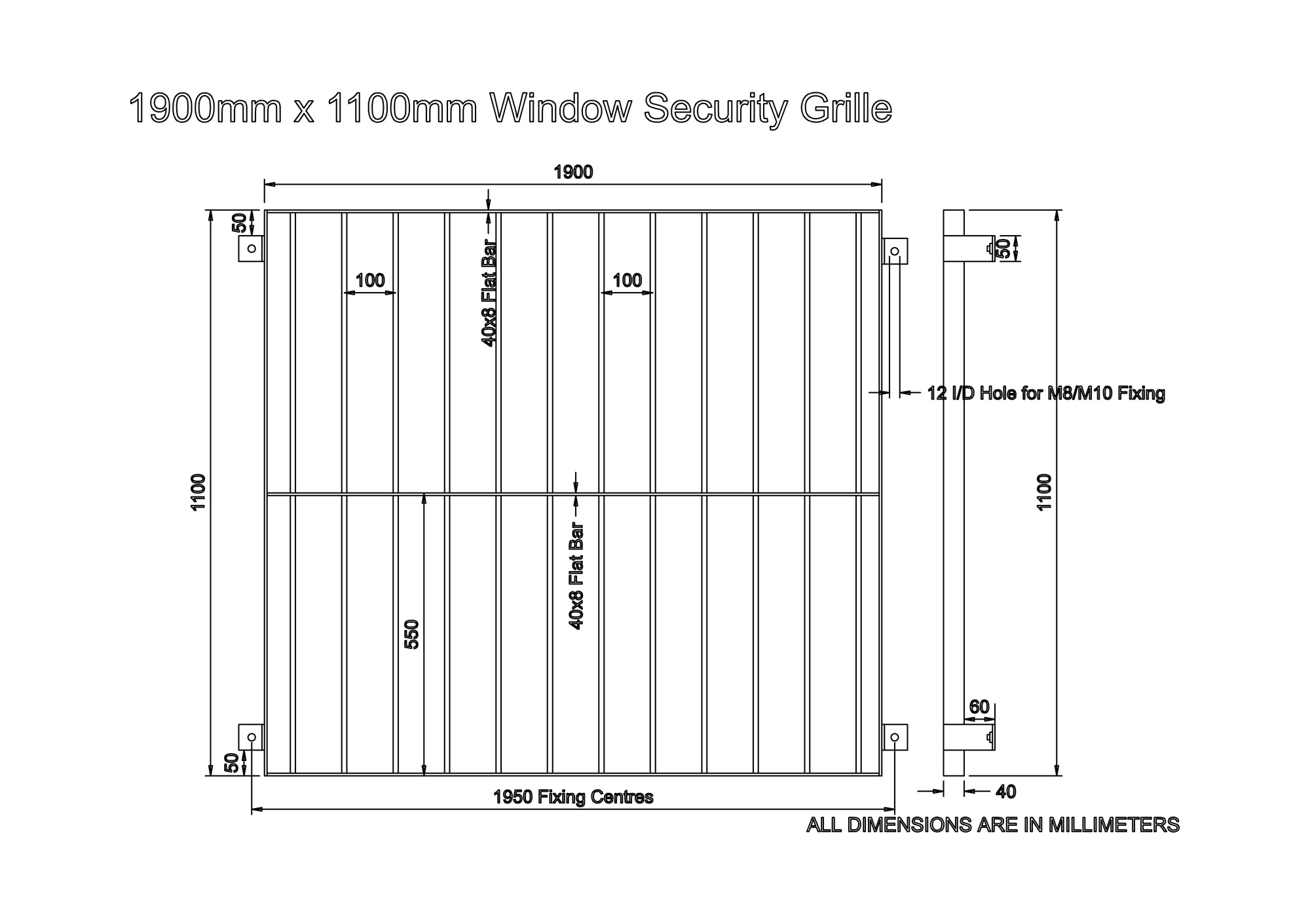

1900mm (w) x 1100mm (h) /user/products/large/1900mm-x-1100mm---Window-Se.jpg
1900mm (w) x 1300mm (h) /user/products/large/1900mm-x-1300mm---Window-Se.jpg
1900mm (w) x 1500mm (h) /user/products/large/1900mm-x-1500mm---Window-Se.jpg
2000mm (w) x 1100mm (h) /user/products/large/2000mm-x-1100mm---Window-Se.jpg

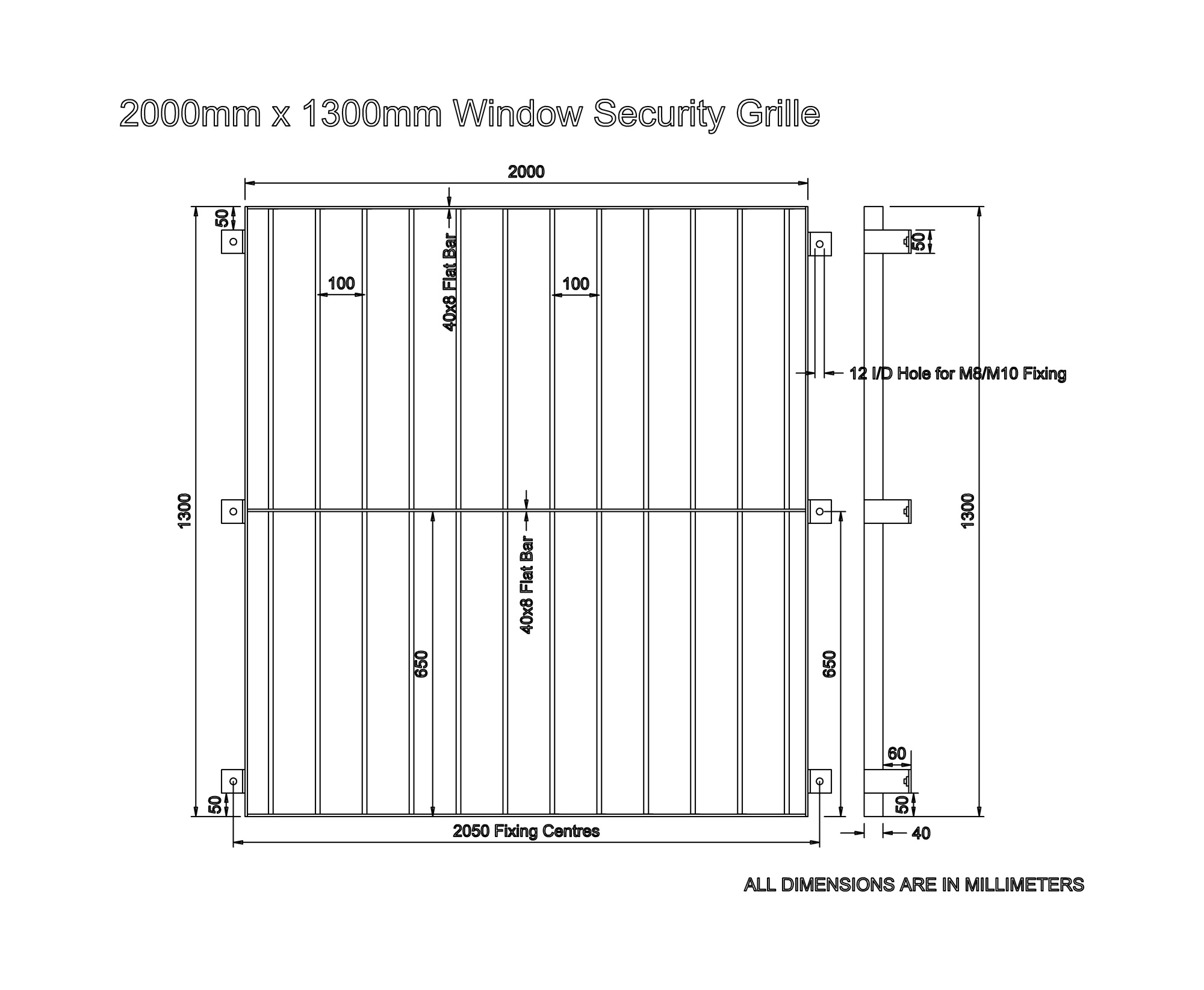

2000mm (w) x 1300mm (h) /user/products/large/2000mm-x-1300mm---Window-Se.jpg
2000mm (w) x 1500mm (h) /user/products/large/2000mm-x-1500mm---Window-Se.jpg
2100mm (w) x 1100mm (h) /user/products/large/2100mm-x-1100mm---Window-Se.jpg
2100mm (w) x 1300mm (h) /user/products/large/2100mm-x-1300mm---Window-Se.jpg
2100mm (w) x 1500mm (h) /user/products/large/2100mm-x-1500mm---Window-Se.jpg
